1560GM

Per pinze elastiche DIN 6499 | Per pinze elastiche ISO 15488 | DIN 6535

Suitable for DIN 6499/ISO 15488 ER collets, with clamping diameter based on the inner size. For DIN 6535 shanks and full diameters also with internal lubrication. High-precision, very high tightness, max centring of tools such as milling cutters, drills, countersinks, reamers, boring bars, etc. with the highest torque. The perfect manufacture of the trapezoidal threaded and long double guide locking collar ensures max centring, higher rotation precision and repetibility, long-term performance and easy replacement of tapping collets.
If used together with orig. Fahrion collets Art. 1561 GL-N, this product ensures a precision inferior or equal to 8 µm.

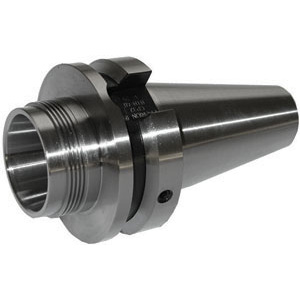

MAS/BT ER PINCERS HOLDER CHUCKS

MAS/BT BT 40 shank, M16 internally threaded end.
Balancing level G 6.3 15000 rpm

Chucks are supplied without locking collars and without seal rings.
For locking collars and rings see Art. 1560 GPA-B-C-E.

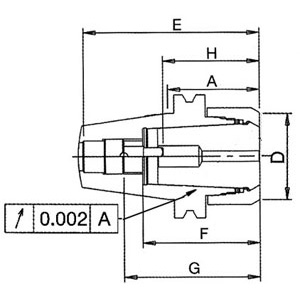

The E value refers to tools with shank < or = 16mm.
The F value refers to tools with shank > 16mm.
